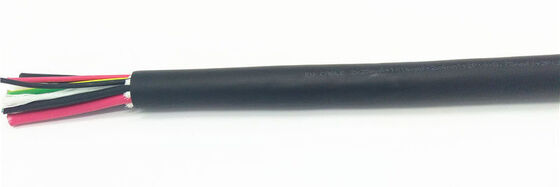

High Flexible Oil Resistant UV Resistant EV Charging Cable Electric Vehicle Charging Wire

Gambar besar : High Flexible Oil Resistant UV Resistant EV Charging Cable Electric Vehicle Charging Wire

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	Tpe
Bahan isolasi:	Tpe	Bentuk material:	Kawat bundar
Nilai Tegangan:	450/750V AC	Suhu terukur:	-40ºC-90ºC
Resistensi api:	IEC60332-1-3, FT1, FT2	Ketahanan tegangan:	DC 2,5kV/15 menit (kabel listrik), DC 1,5kV/15 menit (kabel sinyal)
Tipe Konduktor:	Tembaga terdampar, kaleng atau telanjang	Inti Perakitan:	10~70 (2~5 core) + 0,5~0,75P (1~10 core)
Ketahanan Minyak:	Ya	Resistensi UV:	Ya
Bukti Kelembaban:	Ya	Api Tinggi:	Ya
Fleksibilitas:	Sangat Fleksibel
Menyoroti:	High Flexible EV Charging Cable , Oil Resistant Electric Vehicle Charging Cable , UV Resistant EV Charging Wire

EV DC-SSPS DC Electric Vehicle Charging Cable

Key Advantages

High flexibility with excellent bending capability
Oil resistant construction
UV resistant for outdoor applications
High flame resistance
Moisture-proof design

Application Range

Connection wire between EV AC charging equipment
EV AC Charging stations and AC Charging piles

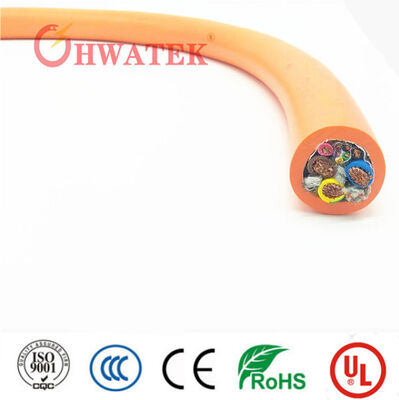

Cable Construction

Conductor: Stranded, tinned or bare copper

Insulation: Thermoplastic Elastomer

Assembly: 10~70(2~5 cores) + 0.5~0.75P (1~10 cores)

Non-woven wrap

Sheath: TPE (Thermoplastic Elastomer)

Application Standards

CQC1103~1105-2015

RoHS Compliant

REACH Compliant

Technical Specifications

Parameter	Specification
Rated Voltage	450/750V AC
Rated Temperature	-40ºC to 90ºC
Flame Rating	IEC60332-1-3, FT1, FT2
Voltage Withstand Test (Power Wire)	1.0~70mm²: DC 2.5kV/15min
Voltage Withstand Test (Signal Wire)	0.5~0.75mm²P: DC 1.5kV/15min

Company Profile

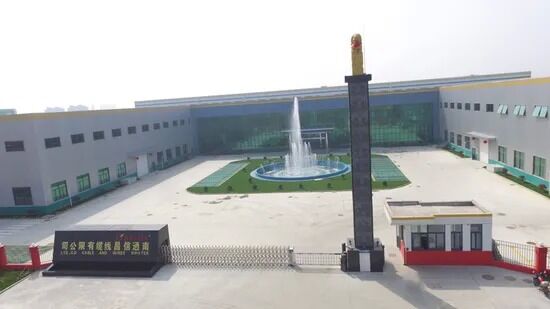

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
