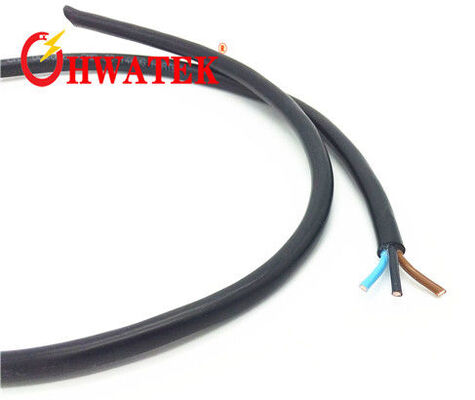

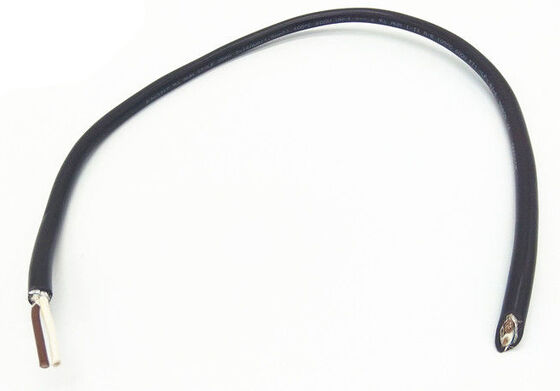

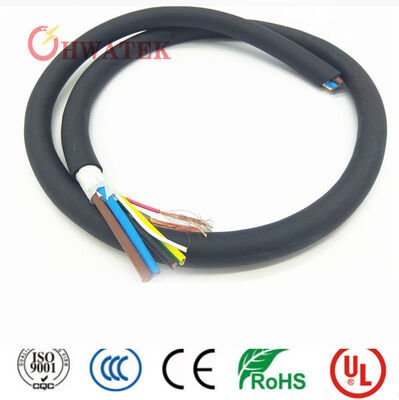

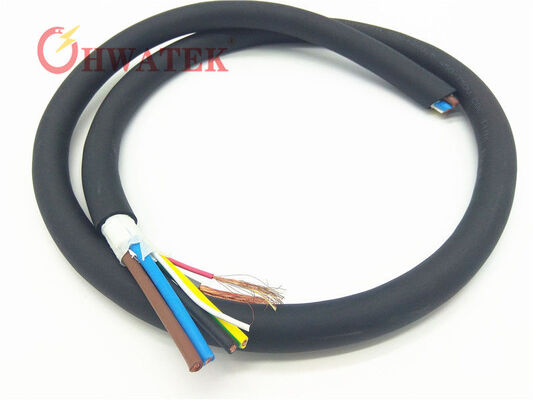

Customized UL Certified High-Flexible Oil Resistant EV Charging Cable for Electric Vehicle Charging Stations

Gambar besar : Customized UL Certified High-Flexible Oil Resistant EV Charging Cable for Electric Vehicle Charging Stations

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	PVC
Bahan isolasi:	PVC	Bentuk material:	Kawat bundar
Jumlah per rol:	305m, 610m atau sebagai permintaan	Nilai Tegangan:	450/750V AC
Suhu terukur:	-40ºC-90ºC	Standar Api:	IEC60332-1-3, FT1, FT2
Uji Ketahanan Tegangan:	Kabel listrik: DC 2,5kV/15 menit, Kabel sinyal: DC 1,5kV/15 menit	Tipe Konduktor:	Tembaga terdampar, kaleng atau telanjang
Jenis isolasi:	Elastomer termoplastik	Perakitan:	10~70(2~5core)+0,5~0,75P)(1~10core)
Jenis sarung:	Tpe	Ketahanan Minyak:	Ya
Resistensi UV:	Ya
Menyoroti:	UL Certified EV Charging Cable , High-Flexible Electric Vehicle Charging Cable , Oil Resistant EV Power Cable

Customized EVT EV Charging Cable

PVC Insulation Connection Wire UL Certified

Key Advantages

High-flexible design capable of repeated bending
Oil resistant construction
UV resistant properties
High-flame resistance
Moisture-proof protection

Application Range

Connection wire between EV AC charging equipment
EV AC Charging stations and AC Charging piles

Cable Construction

Conductor: Stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer
Assembly: 10~70(2~5 cores) + 0.5~0.75P(1~10 cores)
Non-woven wrap
Sheath: TPE

Application Standards

CQC1103~1105-2015
RoHS, REACH Compliant

Technical Specifications

Rated Voltage	450/750V AC
Rated Temperature	-40ºC to 90ºC
Flame Resistance	IEC60332-1-3, FT1, FT2
Voltage Withstand Test	Power wire: 1.0~70mm² - DC 2.5kV/15min Signal wire: 0.5~0.75mm²P - DC 1.5kV/15min

Company Profile

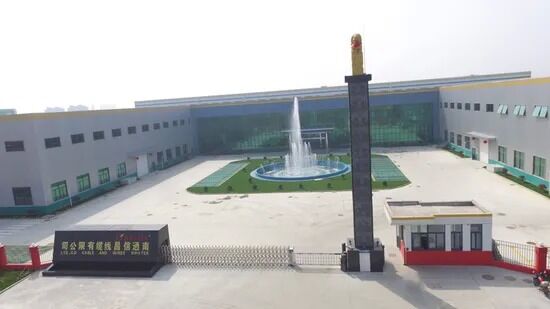

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We work with global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
