High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance

High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance

Gambar besar :  High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance

Detail produk:
Sertifikasi: ISO9001, CCC, RoHS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 3.000
Harga: 0.5
Kontak
Detil Deskripsi produk
Bahan konduktor: Tembaga Bahan selubung: PVC
Bahan isolasi: Tpe Bentuk material: Kawat bundar
Jumlah/Gulungan: 305m,610m atau sesuai Permintaan Resistensi konduktor maksimal: 8.9-11.4 Ω/km (20ºC)
Suhu pengenal: 80ºC-105ºC Tegangan Dinilai: 300V (EVJE, EVJT), 600V (EVE, EVT)
Konstruksi Konduktor: 41/0.16, 26/0.254, 65/0.16, dll. Ketebalan nominal: 0.76mm, 1.14mm, 1.52mm, dll.
Diameter inti: 2.8mm, 3.1mm, 3.4mm, dll. Diameter luar: 0-12.0mm, 11.18-15.0mm, 14.54-20.0mm, dll.
Perisai: jalinan tembaga kaleng Tahan terhadap Suhu Rendah: -40ºC
Fleksibilitas: Tinggi
Menyoroti:

300V Rated EV Charging Cable

,

600V Rated Electric Vehicle Charging Cable

,

80ºC-105ºC Rated Temperature EV Power Cable

High Voltage Flame Retardant EV Power Charging Copper Wire Cable
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 0
Product Specifications
Type Conductor Insulation Jacket Max. Cond. Resistance(20ºC)Ω/km
AWG No. Construction Nom. Thickness mm Diameter Core Diameter Nom. Thickness Outer Diameter
EVJE EVJT(300V) 18 2-6C 41/0.16 0.76 2.8 0-8.89 0.76 0-12.0
Application
Connection wire between EV charging equipment and EV, including various EVs, charging stations, and charging piles.
Application standard: UL62
Product Characteristics
  • Flexible cable for easy installation
  • Excellent resistance to oil, pressure, and abrasion
  • Performs well in low temperatures down to -40ºC
Product Structure
  • Tinned or bare stranded copper conductor
  • TPE or PVC insulation
  • Tinned copper braid shielding
  • PVC or TPE jacket
Technical Parameters
  • Rated temperature: 80ºC-105ºC
  • Rated Voltage: 300V (EVJE, EVJT)
  • Rated Voltage: 600V (EVE, EVT)
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 1 High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 2

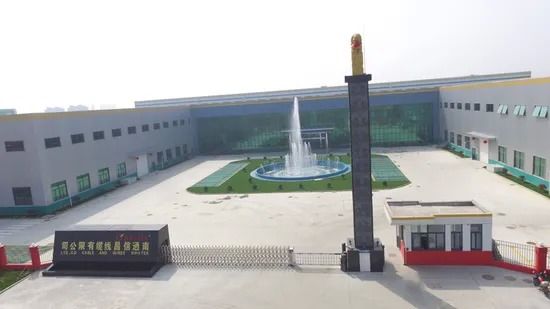

Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certified with ISO9001, ISO14001, IATF16949, ISO13485 systems, all products have passed CCC, UL, CUL, CE, CSA, ETL safety certifications.
Certificates
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 3
Production Process
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 4
Shipping
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 5
FAQ
Q: What can you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Major Customers
High Voltage 300V and 600V Rated EV Charging Cable with 80ºC-105ºC Temperature Resistance 6
