GB/T33594-2017 GB/T20234-2017 K175-2 EV Charging Cable and Electric Vehicle Charging Cable with High Flexibility and 1000V DC

Name: GB/T33594-2017 GB/T20234-2017 K175-2 EV Charging Cable and Electric Vehicle Charging Cable with High Flexibility and 1000V DC
Brand: NANTONG HWATEK WIRES AND CABLE CO.,LTD.
Price: 0.5 USD
Availability: InStock

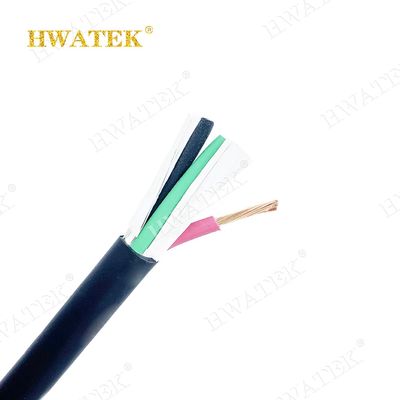

Gambar besar : GB/T33594-2017 GB/T20234-2017 K175-2 EV Charging Cable and Electric Vehicle Charging Cable with High Flexibility and 1000V DC

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tipe VI Tembaga Telanjang Telanjang/Tembaga Tertalir	Bahan isolasi:	Elastomer sintetis/tpe
Bahan selubung:	TPE/TPU	Kisaran suhu:	-40 ~ 90ºC
Tegangan Dinilai:	1000VDC	Konstruksi Kabel 1:	2x95mm2+35mm2+2x4mm2+2p (4 × 0,75mm2)+2p (2x0.75mm2)
Peringkat Saat Ini 1:	250a	Konstruksi Kabel 2:	2x80mm2+25mm2+2x4mm2+2p (4 × 0,75mm2)+2p (2x0.75mm2)
Peringkat saat ini 2:	200a	Konstruksi Kabel 3:	2x70mm2+25mm2+2x4mm2+2p (4 × 0,75mm2)+2p (2x0.75mm2)
Peringkat Saat Ini 3:	200a	Konstruksi Kabel 4:	2x50mm2+25mm2+2x4mm2+2p (4 × 0,75mm2)+2p (2x0.75mm2)
Peringkat Saat Ini 4:	150a	Konstruksi Kabel 5:	2x35mm2+25mm2+2x4mm2+2p (4 × 0,75mm2)+2p (2x0.75mm2)
Peringkat Saat Ini 5:	125A
Menyoroti:	GB/T33594-2017 EV Charging Cable , GB/T20234-2017 Electric Vehicle Charging Cable , K175-2 EV Cable

Electric Vehicle AC and DC Charging Cable (EV Cable)

Application Range

Designed for connecting electric vehicle charging equipment to electric vehicles, including:

Various electric vehicles
Charging stations
Swap stations
Charging piles

Technical Specifications

Application Standard: GB/T33594-2017, GB/T20234-2017, K175-2

Product Features

Wear resistance
Oil resistance
UV resistance
Cold resistance
High flame resistance
Moisture resistance
High flexibility

Construction Details

Conductor: Type VI stranded bare copper/tinned copper
Insulation: Synthetic elastomer/TPE
Sheath: TPE/TPU
Temperature Class: -40~90ºC
Rated Voltage: 1000V DC

Note: Similar specifications can be customized according to customer requirements.

Cable Specifications

Cable Construction	Rated Voltage	Current (A)	Color
2x95mm²+35mm²+2x4mm²+2P(4×0.75mm²)+2P(2x0.75mm²)	1000V	250A	Customized
2x80mm²+25mm²+2x4mm²+2P(4×0.75mm²)+2P(2x0.75mm²)	1000V	200A	Customized
2x70mm²+25mm²+2x4mm²+2P(4×0.75mm²)+2P(2x0.75mm²)	1000V	200A	Customized
2x50mm²+25mm²+2x4mm²+2P(4×0.75mm²)+2P(2x0.75mm²)	1000V	150A	Customized
2x35mm²+25mm²+2x4mm²+2P(4×0.75mm²)+2P(2x0.75mm²)	1000V	125A	Customized
2x25mm²+25mm²+2x4mm²+2P(4×0.75mm²)+2P(2x0.75mm²)	1000V	80A	Customized

Product Images

Manufacturer Information

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.

We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.

Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA, TUV, DEKRA, IEC, CQC or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.

Frequently Asked Questions

Q: What can you supply?

A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.

Q: What are the certificates do you get?

A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.

Q: Can we get samples before ordering?

A: Yes, we are willing to arrange samples for you.

Q: What's your lead time?

A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.

Q: How can you guarantee the product quality?

A: Always a pre-production sample before mass production and final inspection before shipment.
