UL Certified EV Charging Cable with 305m/610m Length VW-1 Flame Test and 300V/600V Rated for Electric Vehicles

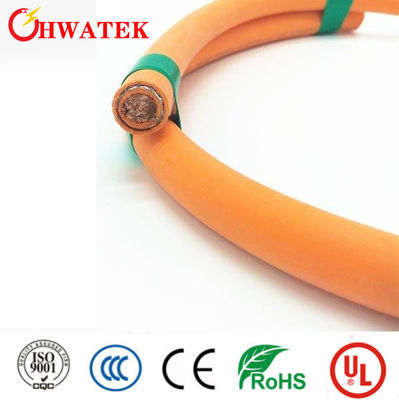

Gambar besar : UL Certified EV Charging Cable with 305m/610m Length VW-1 Flame Test and 300V/600V Rated for Electric Vehicles

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	PVC
Bahan isolasi:	Tpe	Bentuk material:	Kawat bundar
Suhu pengenal:	-40 ~ +105 ° C.	Tegangan Dinilai:	300V (EVJE, EVJT), 600V (EVE, EVT)
Jenis konduktor:	Tembaga telanjang atau kaleng terdampar	Uji Api:	VW-1
Spesifikasi kawat:	3 × 16AWG ke 2 × 2AWG+4AWG+18AWG	Arus referensi:	12a hingga 100a
Rentang diameter:	8.2mm hingga 30.1mm	Tahan Dingin:	Ya
Resistensi abrasi:	Ya	Resistensi minyak:	Ya
Resistensi UV:	Ya
Menyoroti:	305m/610m Length EV Charging Cable , VW-1 Flame Test Electric Vehicle Charging Cable , 300V/600V Rated EV Power Cable

UL Certified EVE EVT EVJE EVJT Electric Vehicle Car Power Charging Cable

Reference Standard

UL62 CSA C22.2 No.49

Product Categories

EVE / EVT (18AWG-500cmil, >=2 Cores)
EVJE / EVJT (18AWG-12AWG, 2-6 Cores)

Construction Specifications

Rated temperature: -40°C to +105°C
Rated voltage: 300V (EVJE, EVJT) / 600V (EVE, EVT)
Conductor: Stranded bare or tinned copper
Insulation material: TPE/PVC
Sheath material: TPE/PVC
Features: Cold resistance, abrasion resistance, oil resistance, water resistance, UV resistance
Passes VW-1 flame test with excellent resistance to flame propagation

Applications

Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.

Structural Parameter Table

Category	Wire Specifications	Reference Current (A)	Diameter (mm)
UL: EVE, EVT 600V	3×16AWG	12	10.8
	3×14AWG	16	13.4
	3×12AWG	23	14.2
	3×10AWG	32	16.2
	3×16AWG+1×18AWG	12	11.4
	3×14AWG+1×18AWG	16	13.6
	3×12AWG+1×18AWG	23	14.3
	3×10AWG+1×18AWG	32	15.9
	3×8AWG+1×18AWG	46	21.8
	2×8AWG+10AWG+18AWG	46	20.9
	2×6AWG+8AWG+18AWG	63	23.1
	2×4AWG+6AWG+18AWG	75	26.5
	2×2AWG+4AWG+18AWG	100	30.1
	3×16AWG+2×18AWG	12	12.1
UL: EVJE, EVJT 300V	3×16AWG	12	8.2
	3×14AWG	16	9.0
	3×12AWG	23	10.1
	3×16AWG+1×18AWG	12	8.8
	3×14AWG+1×18AWG	16	9.5
	3×12AWG+1×18AWG	23	11.2
	3×16AWG+2×18AWG	12	9.5
	3×14AWG+2×18AWG	16	12.1
	3×12AWG+2×18AWG	23	13.2

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The sheath color is generally black or orange, but can be customized upon request.

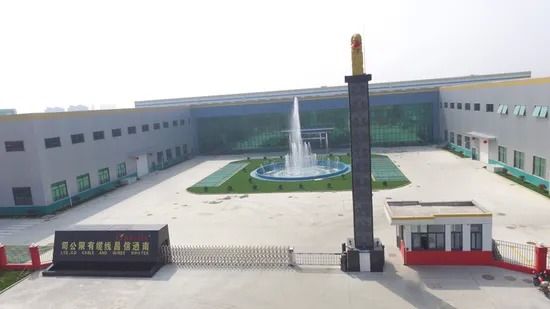

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.

In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

Certified with ISO9001, ISO14001, IATF16949, and ISO13485 systems, all products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
