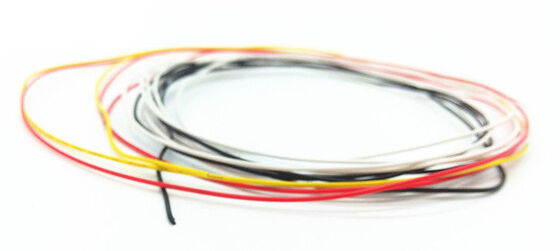

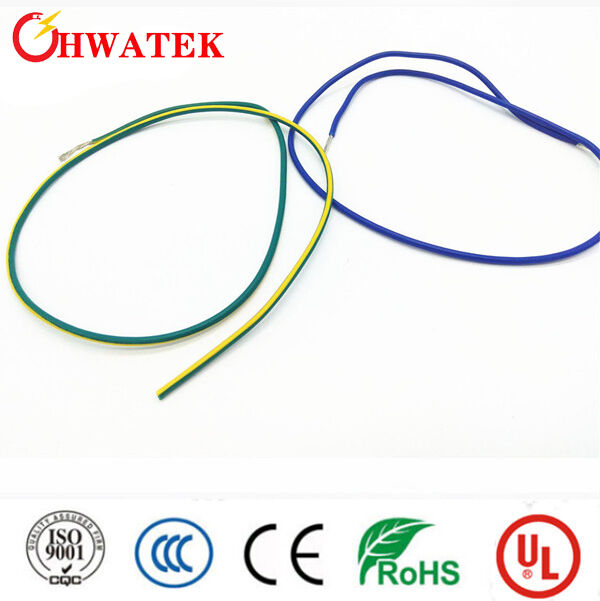

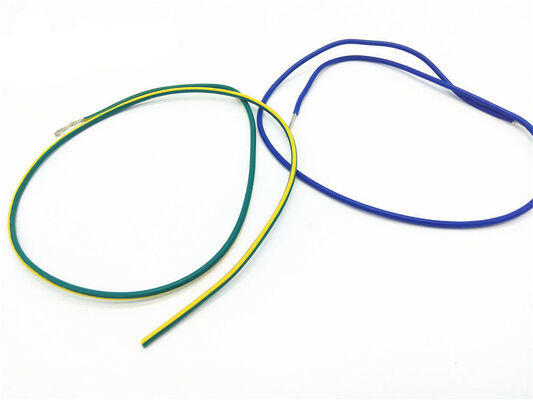

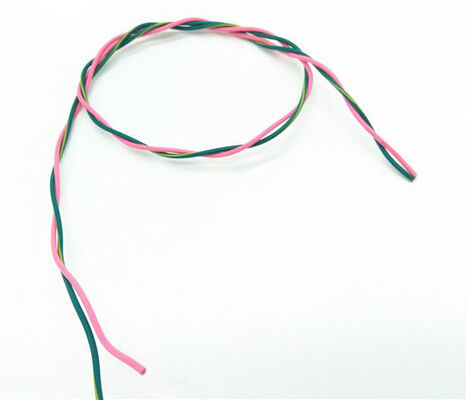

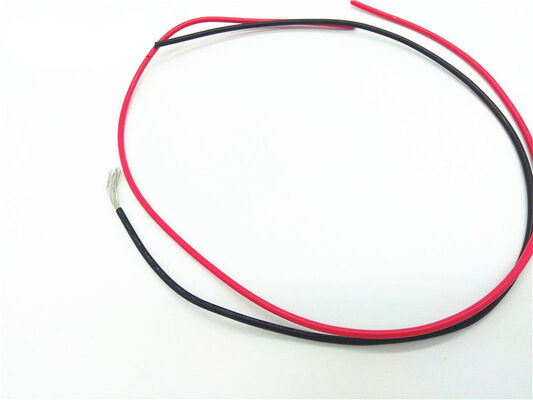

UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire

UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire

Gambar besar :  UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire

Detail produk:
Sertifikasi: ISO9001, CE, CCC, RoHS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 3.000
Harga: 0.5
Kontak
Detil Deskripsi produk
Model TIDAK.: UL1061 Bahan isolasi: Khusus Sr-PVC
Bentuk Bahan: Kawat Bulat Tipe Konduktor: Tembaga telanjang atau kaleng terdampar, IEC60228 CL5
Nilai Tegangan: 300V suhu terukur: 80ºC
Peringkat Api: VW-1, FT1, FT2 Ketahanan Minyak: Minyak 60ºC atau 80ºC
Uji tegangan: AC 2.0KV/1 menit Detail Pencetakan: E258652 AWM GAYA 1061 AWGXX 80ºC 300V VW-1 ---c AWM IA/B 80ºC 300V FT1 -LF-HWATEK
Radius Bending Minimum: melenturkan kabel 7,5x Ø, pemasangan tetap kabel 4x Ø Jumlah/Gulungan: 305m, 610m atau sebagai permintaan
Paket Transportasi: Digulung dalam gulungan, dikemas dalam palet Standar: UL758, UL1581, UL2556
Kepatuhan: RoHS, Sesuai dengan REACH
Menyoroti:

UL1061 PVC insulated flexible cable

,

Single conductor wire with SR insulation

,

Flexible PVC cable for electrical wiring

UL1061 SR-PVC Insulation Single Conductor Flexible Cable Wire
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 0
Construction
Conductor: Stranded bare or tinned copper, IEC60228 CL5
Insulation: Special SR-PVC
Standards & Compliance
International Standards: UL758, UL1581, UL2556
Compliance: RoHS, REACH Compliant
Technical Specifications
Rated Voltage 300V
Rated Temperature 80ºC
Flame Rating VW-1, FT1, FT2
Oil Resistance 60ºC or 80ºC Oil
Voltage Withstand Test AC 2.0kV/1min
Printing E258652 AWM STYLE 1061 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK
Note: "XX" represents AWG number
Minimum Bending Radius
Flexing: 7.5x cable diameter
Fixed Installation: 4x cable diameter
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 1
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.
In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, with all products passing CCC, UL, CUL, CE, CSA, and ETL safety certifications.
Our management philosophy is built on HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION, serving global customers across various industries.
Certifications & Quality Assurance
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 2 UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 3 UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 4
Production Process
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 5
Shipping & Logistics
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 6
Frequently Asked Questions
Q: What products do you supply?
A: We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you hold?
A: Our products are certified to UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL standards.
Q: Can we receive samples before ordering?
A: Yes, we provide samples for evaluation prior to order placement.
Q: What is your typical lead time?
A: Standard orders are completed in 2-3 weeks, with 5-6 weeks during peak seasons.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling before mass production and perform final inspection before shipment.
Major Customers
UL1061 Sr- PVC Insulation Single Conductor Flexible Cable Wire 7
