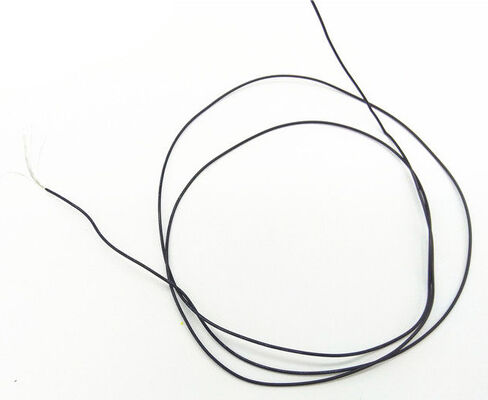

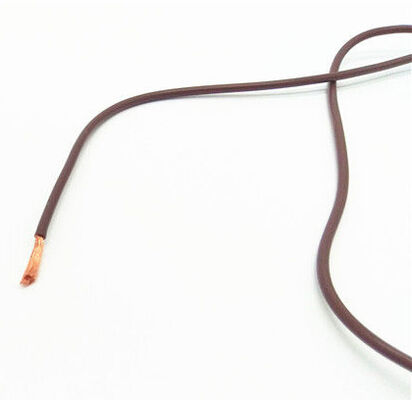

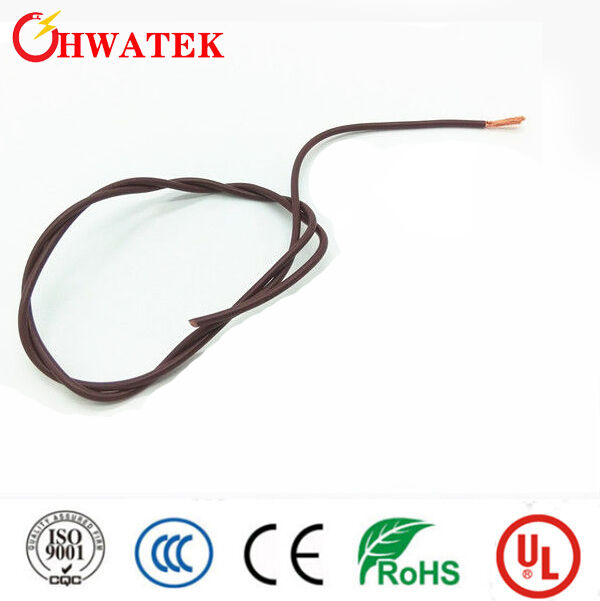

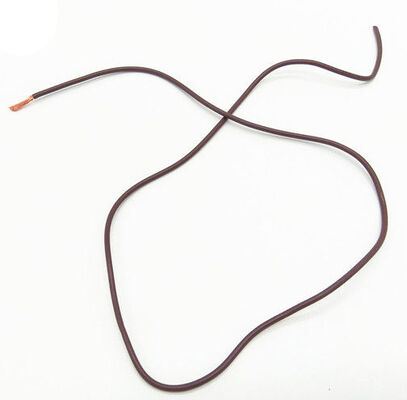

80 º C 1000V Flexible PVC Insulated Single Core Wire

Gambar besar : 80 º C 1000V Flexible PVC Insulated Single Core Wire

Detail produk:

Sertifikasi:	ISO9001, CE, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Tipe Konduktor:	Tembaga terdampar, kaleng atau telanjang	Standar Konduktor:	IEC60228 CL5
Bahan isolasi:	PVC khusus	Bahan Sarung:	PUR
Nilai Tegangan:	1000 V	Kisaran suhu:	-40~80ºC
Standar Api:	IEC60332-1-3, FT1, FT2	Ketahanan Minyak:	60 ºC atau 80 ºC Minyak
Uji tegangan:	AC 2.5KV/1 menit	Jari-jari lentur fleksibel:	Kabel 7,5x Ø
Memperbaiki radius lentur:	4x kabel Ø	Fleksibilitas suhu rendah:	6 bulan
Bebas halogen:	Ya	Jumlah per rol:	305m, 610m atau sebagai permintaan
Bentuk Bahan:	Kawat Bulat
Menyoroti:	80ºC PVC insulated single core wire , 1000V flexible single conductor cable , high-temperature PVC insulated electrical wire

80°C 1000V Flexible PVC Insulated Single Core Wire

Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC
Sheath: PUR

Standards & Compliance

International: UL758, UL1581, UL2556
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage	1000 V
Rated Temperature	-40°C to 80°C
Flame Rating	IEC60332-1-3, FT1, FT2
Oil Resistance	60°C or 80°C Oil
Voltage Withstand Test	AC 2.5kV/1min

Minimum Bending Radius

Flexing: 7.5x cable diameter
Fixed Installation: 4x cable diameter

Key Properties

Halogen-free
Flexible at low temperatures down to -40°C
Resistant against pressure
Overroll steady
Cut and scratchproof

Certifications

UL, CUL, CE
