UL20940 Electrical Multi Core PUR Sheath Copper Conductor Oil Resistant Wire Cable for Tool Machines

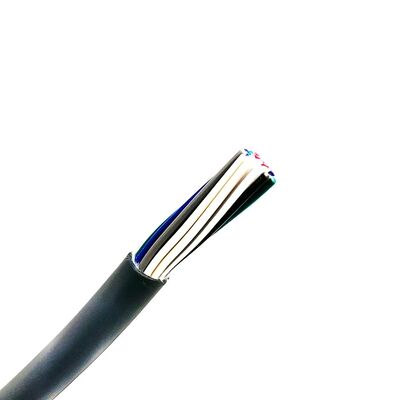

Gambar besar : UL20940 Electrical Multi Core PUR Sheath Copper Conductor Oil Resistant Wire Cable for Tool Machines

Detail produk:

Sertifikasi:	ISO9001, CE, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Nomor model:	UL20940	Bahan Sarung:	PUR
Bahan isolasi:	PVC Khusus, SRPVC, PP, TPEE	Bahan konduktor:	Tembaga terdampar, kaleng atau telanjang
Standar Konduktor:	IEC60228 CL5	Nilai Tegangan:	600v
suhu terukur:	-40ºC hingga 80ºC	Tahan Api:	VW-1, FT1, FT2
Ketahanan Minyak:	Minyak 60ºC atau 80ºC	Ketahanan tegangan:	AC 2.5KV/1 menit
Detail Pencetakan:	E258652 AWM GAYA 20940 AWGXX 80ºC 600V VW-1 ---c AWM IA/B 80ºC 600V FT1 -LF-HWATEK	Jumlah per rol:	305m, 610m atau sebagai permintaan
Bentuk Bahan:	Kawat Bulat	Pilihan Warna:	Opsional
Pengemasan Transportasi:	Digulung dalam gulungan, dikemas dalam palet
Menyoroti:	UL20940 Electrical Wire Cable , Copper Conductor Multi Core Cable , Oil Resistant PUR Sheath Cable

UL20940 Electrical Multi Core PUR Sheath Copper Conductor for Tool Machines Wire Cable

Cable Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5

Insulation: Special PVC, SRPVC, PP, TPEE

Jacket: PUR

Application

These cables are designed for flexible use with medium mechanical stresses, suitable for free movement without tensile stress or forced movements in dry, moist, and wet indoor environments. Ideal for use as measuring and control cables in tool machines and industrial equipment.

Standards Compliance

International: UL758, UL1581, UL2556

RoHS, REACH Compliant

Technical Specifications

Rated Voltage	600V
Temperature Range	-40ºC to +80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.5kV/1min
Printing	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK

Note: "XX" represents AWG number

Key Properties

Extensively oil resistant
Conditional drag chain compatible
Conditional suitability for torsion
Low temperature performance
Self-extinguishing and flame retardant
