EV Charging Cable with 30km/Day Production Capacity Multicore Copper Conductor for High Voltage Applications

Gambar besar : EV Charging Cable with 30km/Day Production Capacity Multicore Copper Conductor for High Voltage Applications

Detail produk:

Sertifikasi:	ISO9001, CE, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga yang terdampar terdampar	Bahan selubung:	TPU
Bahan isolasi:	Thermoplastik (EF2585,85 ± 3A)	Tegangan Dinilai:	DC 1000V
Suhu pengenal:	Jaket -40 ~ 90ºC, isolasi -40 ~ 125ºC	Resistensi konduktor maksimal:	A: 0.242Ω/km, B: 0.78Ω/km, C: 4.95Ω/km, D & E: 26Ω/km
Tegangan isolasi tahan:	AC 2.5KV/5 menit, arus bocor ≤5mA	Tegangan kabel tahan:	AC 3.5KV/15 menit, arus bocor ≤5mA
Resistensi isolasi min min:	500mΩ.km	Kekuatan tarik:	≥20Mpa
Pemanjangan:	≥300%	Radius tikungan min:	6*Od
Resistensi abrasi:	≥2000 kali	Diameter luar:	38.00+0.6/-1.00mm
Kapasitas produksi:	30KM/Hari
Menyoroti:	30km/Day Production Capacity EV Charging Cable , Multicore EV Charging Cable , Copper Conductor EV Charging Cable

AC/DC 1000V High Voltage EV Power Charger Multicore Electric Wire Cable

Product Specifications

Product	A: 2C×80mm²	B: 1C×25mm²	C: 1C×4mm²	D: (3C×0.75mm²)(P2)	E: (7C×0.75mm²)
CONDUCTOR
Material	Bared copper stranded
Size	2580/0.20±0.008mm	798/0.20±0.008mm	224/0.15±0.008mm	40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar	40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar
O.D.(Ref.)	12.40±0.25mm	7.00±0.20mm	2.70±0.15mm	1.40±0.10mm	1.40±0.10mm
INSULATION
Material	Thermoplastic(EF2585,85±3A)
Min. average thickness	1.60mm	1.20mm	1.00mm	0.50mm	0.50mm
Min.thickness at any point	1.34mm	0.98mm	0.80mm	0.35mm	0.35mm
O.D.	15.60±0.40mm	9.60±0.30mm	4.70±0.20mm	2.50±0.10mm	2.50±0.10mm

Technical Specifications

Electrical Characteristics	Physical Properties
Rated voltage: DC 1000V	Tensile strength: ≥20MPa
Rated temperature: Jacket -40~90ºC Insulation -40~125ºC	High temperature pressure test: ≤50%
Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Heat shock test: No crack
Insulation Voltage withstand(Core A&B,10m): AC 2.5kV/5min,leakage current ≤5mA	Compatibility test: GB/T 33594
Completed cable Voltage withstand(Core A to A&B,10m): AC 3.5kV/15min,leakage current ≤5mA	Crush resistance test: GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B): 500MΩ.km	Curved around the test: GB/T 33594

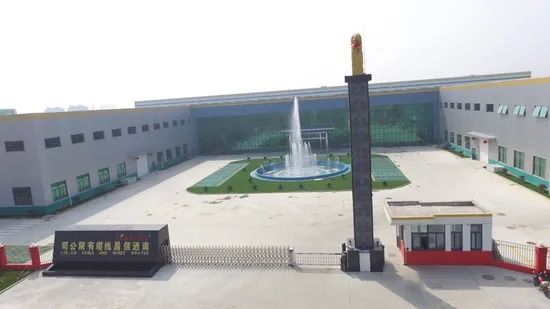

Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

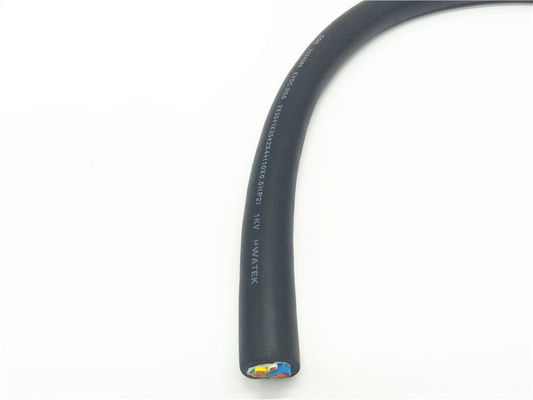

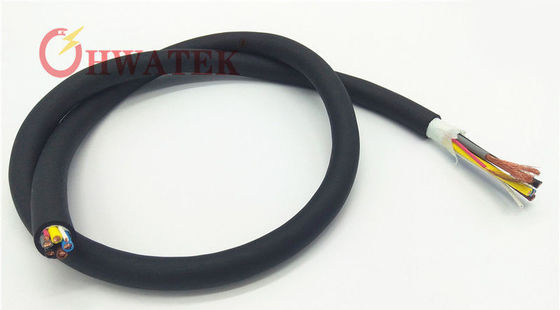

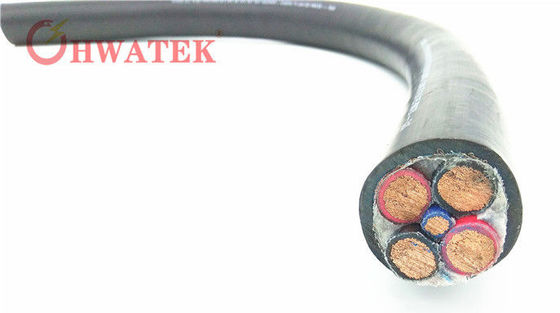

Product Images
