1000V High Voltage EV Charging Cable with 20km/Day Production Capacity ISO Certified and RoHS Compliant

Gambar besar : 1000V High Voltage EV Charging Cable with 20km/Day Production Capacity ISO Certified and RoHS Compliant

Detail produk:

Sertifikasi:	ISO9001, CE, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan selubung:	Tpe	Bahan isolasi:	TPU
Bentuk material:	Kawat bundar	Spesifikasi kabel:	2c × 80mm2+1c × 25mm2+2c × 4mm2+(3c × 0,75mm2) (p2)+(7c × 0,75mm2)
Bahan konduktor:	Tembaga yang terdampar terdampar	Tegangan Dinilai:	DC 1000V
Suhu pengenal:	Jaket -40 ~ 90ºC, isolasi -40 ~ 125ºC	Resistensi konduktor maksimal:	A: 0.242Ω/km B: 0.78Ω/km C: 4.95Ω/km D & E: 26Ω/km
Tegangan isolasi tahan:	AC 2.5KV/5 menit, arus bocor ≤5mA	Resistensi isolasi min min:	500mΩ.km
Kekuatan tarik:	≥20Mpa	Pemanjangan:	≥300%
Radius tikungan min:	6*Od	Resistensi abrasi:	≥2000 kali
Kapasitas produksi:	20 km/hari
Menyoroti:	1000V High Voltage EV Charging Cable , ISO Certified EV Charging Cable , RoHS Compliant EV Charging Cable

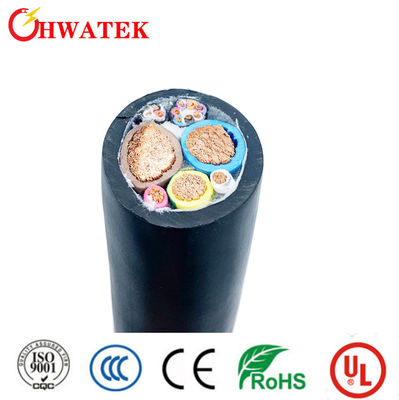

1000V HV High Voltage EV Power Charger Multicore DC Electric Wire Cable

Product Specifications

SPECIFICATION	CABLE NAME	EV Cable
CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant
Item	A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2)

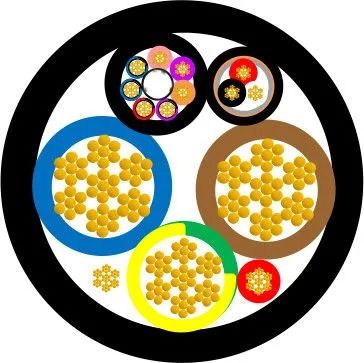

Detailed Construction

Component	Material	Specifications
CONDUCTOR	Bared copper stranded	Size: 2580/0.20 ±0.008mm \| 798/0.20 ±0.008mm \| 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar \| 40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar \| 40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar
O.D.(Ref.)	12.40±0.25mm \| 7.00±0.20mm \| 2.70±0.15mm \| 1.40±0.10mm \| 1.40±0.10mm
INSULATION	Thermoplastic(EF2585,85±3A)	Min. average thickness: 1.60mm \| 1.20mm \| 1.00mm \| 0.50mm \| 0.50mm Min.thickness at any point: 1.34mm \| 0.98mm \| 0.80mm \| 0.35mm \| 0.35mm O.D.: 15.60±0.40mm \| 9.60±0.30mm \| 4.70±0.20mm \| 2.50±0.10mm \| 2.50±0.10mm

Performance Characteristics

Electrical Characteristics

Physical Properties

Rated voltage: DC 1000V
Rated temperature:
Jacket -40~90ºC
Insulation -40~125ºC
Max. conductor resistance(20ºC):
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km
Insulation Voltage withstand(Core A &B,10m):
AC 2.5kV/5min,leakage current ≤5mA
Completed cable Voltage withstand(Core A to A &B,10m):
AC 3.5kV/15min,leakage current ≤5mA
Min. Insulation resistance(20ºC, Core A to A &B):500MΩ.km

Tensile strength: ≥20MPa
Elongation: ≥300%
Aged condition: 110±1ºC×168h
Percent of original tensile strength: ≤±30%
Percent of original elongation: ≤±30%
Flame test: GB/T 18380.12-2008
Min. Bend radius: 6*OD
Abrasion resistance: ≥2000times

Company Profile

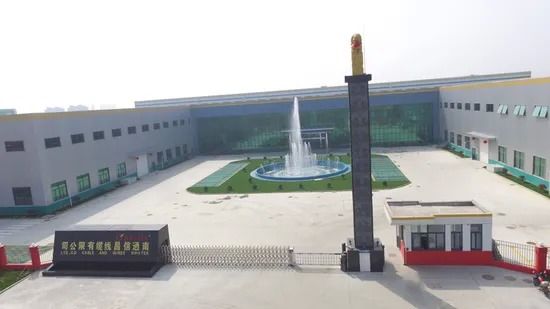

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
