FRPE Jacket Multi Core Hook Up Wire Cable 305m Roll Industrial Control

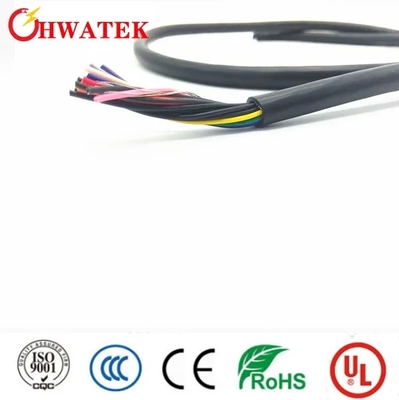

Gambar besar : FRPE Jacket Multi Core Hook Up Wire Cable 305m Roll Industrial Control

Detail produk:

Sertifikasi:	ISO9001, CE, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan selubung:	FRPE	Bahan isolasi:	PP atau PE
Bentuk material:	Kawat bundar	Suhu pengenal:	80ºC
Tegangan Dinilai:	30V	Jenis konduktor:	Kaleng atau telanjang, terdampar atau tembaga tunggal
Tipe Perisai:	Perisai spiral atau kepang dengan pelindung kaleng atau telanjang atau al-mylar yang dibungkus	Resistensi konduktor maksimal:	74,5 Ω/km (untuk 0,25mm²), 59,4 Ω/km (untuk 0,34mm²)
Diameter konduktor:	0,60mm (untuk 0,25mm²), 0,75mm (untuk 0,34mm²)	Ketebalan isolasi:	0,80mm
Diameter nominal:	2.20mm (untuk 0.25mm²), 2.35mm (untuk 0.34mm²)	Tebal Jaket:	1.0mm
Diameter jaket nominal:	6.7mm hingga 8.3mm (bervariasi menurut jumlah inti)	Uji Api:	UL VW-1 dan CSA FT1 Tes nyala api vertikal lulus
Opsi inti:	2C-50C
Menyoroti:	FRPE jacket multi core cable , industrial control hook up wire , 305m flexible cable roll

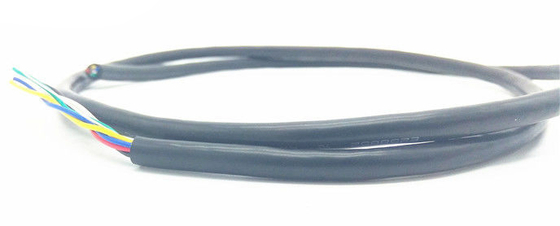

FRPE Jacket Multi Core Hook Up Wire Cable

Product Specifications

Attribute	Value
Sheath Material	FRPE
Insulation Material	PP or PE
Material Shape	Round Wire
Range of Application	Industrial Control
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m or as Request
Transport Package	Rolled in Reels, Packed in Pallets
Trademark	Hwatek
Origin	China
HS Code	8544492100

Product Description

Designed for industrial machinery, instruments, control systems, and electronic equipment. Ideal for internal wiring of sensors and other precision applications.

Key Features

Oil and heat resistant with excellent anti-abrasion properties
Halogen free construction
Passes UL VW-1 and CSA FT1 vertical flame tests
Complies with UL758, UL1581 standards
UL numbers: UL20855, UL21100, UL21118

Construction Details

Conductor: Tinned or bare, stranded or single copper
Insulation: PE or PP material
Configuration: Two or more single-core wires twisted together
Shielding: Spiral or braiding with tinned/bare copper or Al-mylar wrap
Jacket: FRPE material

Technical Parameters

Rated temperature: 80°C
Rated voltage: 30V

Product Specifications

Product No.	Cores	mm²	NO./mm	Conductor Dia. (mm)	Insulation Thickness (mm)	Insulation Dia. (mm)	Jacket Thickness (mm)	Jacket Dia. (mm)	Max. Cond. Resistance Ω/km
HTD***043	3	0.25	30/0.1	0.60	0.80	2.20	1.0	6.7	74.5
HTD***044	4	0.25	30/0.1	0.60	0.80	2.20	1.0	7.3	74.5
HTD***045	5	0.25	30/0.1	0.60	0.80	2.20	1.0	7.9	74.5
HTD***046	3	0.34	42/0.1	0.75	0.80	2.35	1.0	7.1	59.4
HTD***047	4	0.34	42/0.1	0.75	0.80	2.35	1.0	7.6	59.4
HTD***048	5	0.34	42/0.1	0.75	0.80	2.35	1.0	8.3	59.4

Note: Optional core wire number 2C-50C, and various shielding methods available.
