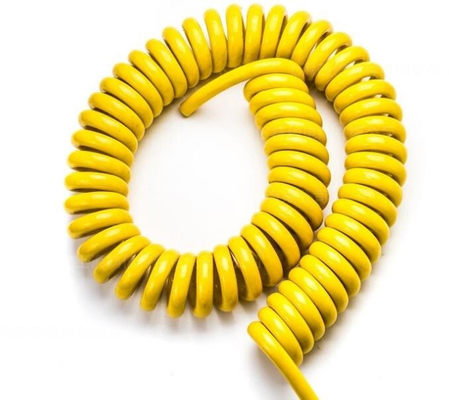

Hwatek PU Sheath Retractable Power Cable 0.32mm2 305m Roll

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	pu
Bahan isolasi:	TPEE	Bentuk material:	Kawat bundar
Ukuran konduktor:	0.32mm2, 0.75mm2, 0.25mm2	Untai konduktor:	19/0.15, 42/0.15, 14/0.15
Ketebalan isolasi:	0.5mm, 0.3mm, 0.45mm	Diameter nominal:	1.75mm, 1.5mm
Ketebalan pita perisai:	0.025mm	Diameter Strand Braid:	0,12mm
Tebal Jaket:	0.8mm	Suhu pengenal:	80ºC
Tegangan Dinilai:	300v	Impedansi:	100 ± 15Ω (0,5MHz), 100 ± 15Ω (1MHz)
atenuasi:	Max 1.5dB/100m (0,5MHz), maks 2.0db/100m (1MHz)
Menyoroti:	Hwatek PU retractable power cable , 0.32mm2 flexible industrial cable , 305m roll PU sheath cable

Retractable Power Push Pull Cables

Product Specifications

Attribute	Value
Conductor Material	Copper
Sheath Material	PU
Insulation Material	Tpee
Material Shape	Round Wire
Range of Application	Communication
Brand	Hwatek
Color	Optional
Qty/Roll	305m, 610m, 1220m or as Request
Transport Package	Rolled in Reels, Packed in Pallets
Trademark	Hwatek
Origin	China
HS Code	8544492100

Technical Specifications

Product Number	Size	NO./mm	Thickness mm	Nom. Dia. mm	Tape thick. mm	Dia. of braid strand mm	Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (20ºC)Ω/km
HT-1042464027	0.32mm²	19/0.15	0.5	1.75	0.025	24/7/0.12	0.8	7.9	56.8
	0.75mm²	42/0.15	0.3	1.75					26
HT-1042464028	0.25mm²	14/0.15	0.45	1.5	0.025	24/7/0.12	0.8	7.9	56.8
	0.75mm²	42/0.15	0.3	1.75					26

Product Features

Designed for 3G network systems
Sunlight resistant and anti-aging properties
Passes UL, VW-1 and FTI vertical flame tests

Construction

Stranded or solid, tinned or bare copper conductor
PP or PE insulation
Longitudinal AL-mylar shielding with tinned or bare copper wire braid
Lead-free and sunlight resistant PVC jacket

Technical Parameters

Rated temperature: 80ºC
Rated Voltage: 300V
Impedance: 100±15(0.5Mhz), 100±15(1Mhz)
Attenuation: Max 1.5dB/100m(0.5Mhz), Max 2.0dB/100m(1Mhz)
