UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Gambar besar : UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	PVC
Bahan isolasi:	Tpe	Bentuk material:	Kawat bundar
Suhu terukur:	-40 ~ +105 ° C.	Nilai Tegangan:	300V (EVJE, EVJT), 600V (EVE, EVT)
Tipe Konduktor:	Tembaga telanjang atau kaleng terdampar	Spesifikasi kawat:	3 × 16AWG ke 2 × 2AWG+4AWG+18AWG
Arus referensi:	12a hingga 100a	Rentang diameter:	8.2mm hingga 30.1mm
Tahan Dingin:	Ya	Ketahanan Abrasi:	Ya
Ketahanan Minyak:	Ya	Tahan Air:	Ya
Resistensi UV:	Ya
Menyoroti:	UL Certified EV Charging Cable , 300V/600V Rated Electric Vehicle Charging Cable , Cold Resistant EV Power Cable

UL Certified EVE EVT EVJE EVJT Electric Vehicle Charging Cable

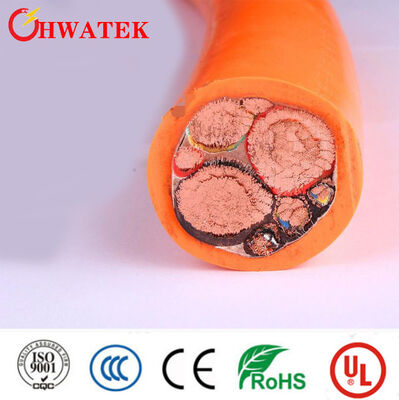

Structure Diagram

Reference Standards

UL62 CSA C22.2 No.49

Product Categories

EVE / EVT
18AWG-500cmil, ≥2 Cores

EVJE / EVJT
18AWG-12AWG, 2-6 Cores

Construction Specifications

Rated Temperature
-40°C to +105°C

Rated Voltage
300V (EVJE, EVJT)
600V (EVE, EVT)

Conductor
Stranded bare or tinned copper

Insulation Material
TPE/PVC

Sheath Material
TPE/PVC

Performance Features

Cold resistance
Abrasion resistance
Oil resistance
Water resistance
UV resistance
Passes VW-1 flame test
Excellent resistance to flame propagation

Applications

Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.

Structural Parameter Table

Category	Wire Specifications	Reference Current (A)	Diameter (mm)
UL:EVE,EVT 600V	3×16AWG	12	10.8
UL:EVE,EVT 600V	3×14AWG	16	13.4
UL:EVE,EVT 600V	3×12AWG	23	14.2
UL:EVE,EVT 600V	3×10AWG	32	16.2
UL:EVE,EVT 600V	3×16AWG+1×18AWG	12	11.4
UL:EVE,EVT 600V	3×14AWG+1×18AWG	16	13.6
UL:EVE,EVT 600V	3×12AWG+1×18AWG	23	14.3
UL:EVE,EVT 600V	3×10AWG+1×18AWG	32	15.9
UL:EVE,EVT 600V	3×8AWG+1×18AWG	46	21.8
UL:EVE,EVT 600V	2×8AWG+10AWG+18AWG	46	20.9
UL:EVE,EVT 600V	2×6AWG+8AWG+18AWG	63	23.1
UL:EVE,EVT 600V	2×4AWG+6AWG+18AWG	75	26.5
UL:EVE,EVT 600V	2×2AWG+4AWG+18AWG	100	30.1
UL:EVE,EVT 600V	3×16AWG+2×18AWG	12	12.1
UL:EVE,EVT 600V	3×14AWG+2×18AWG	16	13.9
UL:EVE,EVT 600V	3×12AWG+2×18AWG	23	15.0
UL:EVE,EVT 600V	3×10AWG+2×18AWG	32	16.6
UL:EVE,EVT 600V	2×8AWG+10AWG+2×18AWG	46	21.9
UL:EVE,EVT 600V	2×6AWG+8AWG+2×18AWG	63	24.8
UL:EVJE,EVJT 300V	3×16AWG	12	8.2
UL:EVJE,EVJT 300V	3×14AWG	16	9.0
UL:EVJE,EVJT 300V	3×12AWG	23	10.1
UL:EVJE,EVJT 300V	3×16AWG+1×18AWG	12	8.8
UL:EVJE,EVJT 300V	3×14AWG+1×18AWG	16	9.5
UL:EVJE,EVJT 300V	3×12AWG+1×18AWG	23	11.2
UL:EVJE,EVJT 300V	3×16AWG+2×18AWG	12	9.5
UL:EVJE,EVJT 300V	3×14AWG+2×18AWG	16	12.1
UL:EVJE,EVJT 300V	3×12AWG+2×18AWG	23	13.2

1. Detailed dimensions are subject to product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. Sheath color is generally black or orange. Custom colors available upon request.

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

Quality Certifications

We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certificates. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.

Management Philosophy

Operating with global customers through our well-established sales system based on the principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.

Certificates & Quality Assurance

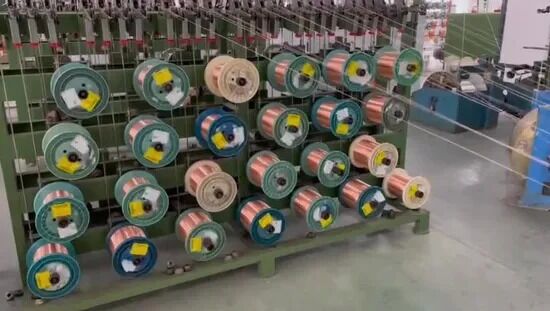

Production Process

Shipping & Logistics

Frequently Asked Questions

What products do you supply?
Consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.

What certificates do you hold?
UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.

Can we get samples before ordering?
Yes, we are willing to arrange samples for you.

What is your lead time?
Normally 2-3 weeks, 5-6 weeks during peak season.

How do you guarantee product quality?
Pre-production samples before mass production and final inspection before shipment.
