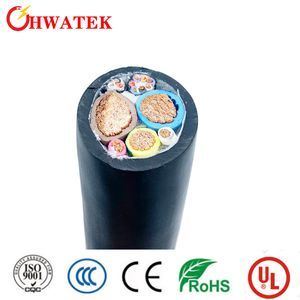

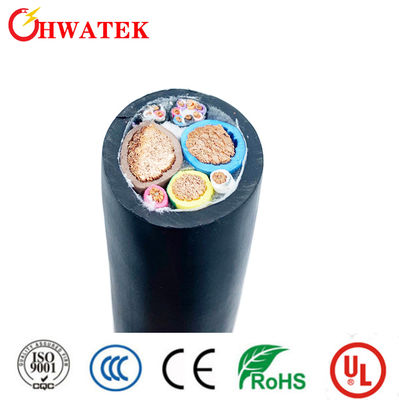

1000V High Voltage DC Electric EV Charging Cable with TPU Insulation and RoHS Compliant Multicore Design

Gambar besar : 1000V High Voltage DC Electric EV Charging Cable with TPU Insulation and RoHS Compliant Multicore Design

Detail produk:

Sertifikasi:	ISO9001, CE, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000 Meter
Harga:	US $0.5-1 / Meter

Kontak

Detil Deskripsi produk

Bahan selubung:	Tpe	Bahan isolasi:	TPU
Bentuk material:	Kawat bundar	Spesifikasi kabel:	2c × 80mm2+1c × 25mm2+2c × 4mm2+(3c × 0,75mm2) (p2)+(7c × 0,75mm2)
Bahan konduktor:	Tembaga yang terdampar terdampar	Ukuran konduktor:	2580/0,20 ±0,008mm, 798/0,20 ±0,008mm, 224/0,15±0,008mm
Diameter luar:	12,40±0,25mm, 7,00±0,20mm, 2,70±0,15mm, 1,40±0,10mm	Ketebalan isolasi:	1.60mm, 1.20mm, 1.00mm, 0.50mm
Nilai Tegangan:	DC 1000V	Suhu pengenal:	Jaket -40 ~ 90ºC, isolasi -40 ~ 125ºC
Resistensi konduktor maksimal:	0,242Ω/km, 0,78Ω/km, 4,95Ω/km, 26Ω/km	Tegangan isolasi tahan:	AC 2.5KV/5 menit, arus bocor ≤5mA
Resistensi isolasi min min:	500mΩ.km	Kekuatan Tarik:	≥20Mpa
pemanjangan:	≥300%
Menyoroti:	DC Electric EV Charging Cable , TPU Insulation EV Charging Cable , RoHS Compliant EV Charging Cable

1000V HV High Voltage EV Power Charger Multicore DC Electric Wire Cable

Product Specifications

SPECIFICATION	CABLE NAME	EV Cable
CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant
Item	A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2)

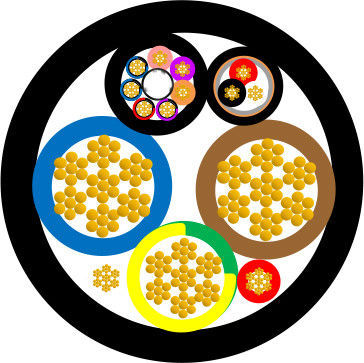

Detailed Construction

Component	Specification
CONDUCTOR	Material: Bared copper stranded Size: - 2580/0.20 ±0.008mm - 798/0.20 ±0.008mm - 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar - 40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar - 40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar
O.D.(Ref.)	12.40±0.25mm \| 7.00±0.20mm \| 2.70±0.15mm \| 1.40±0.10mm \| 1.40±0.10mm
INSULATION	Material: Thermoplastic(EF2585,85±3A) Min. average thickness: 1.60mm \| 1.20mm \| 1.00mm \| 0.50mm \| 0.50mm Min.thickness at any point: 1.34mm \| 0.98mm \| 0.80mm \| 0.35mm \| 0.35mm O.D.: 15.60±0.40mm \| 9.60±0.30mm \| 4.70±0.20mm \| 2.50±0.10mm \| 2.50±0.10mm
CABLING-1	Filler: / \| Cotton \| Cotton Material: / \| AL-mylar(facing out) \| Non-woven
BRAID	Material: / \| Tinned copper \| / Size: / \| 0.12mm,≥60% \| /
In-JACKET	Material: / \| TPE \| TPE Min. average thickness: / \| 0.60mm \| 0.60mm Min.thickness at any point: / \| 0.42mm \| 0.42mm O.D.: / \| 7.20±0.25mm \| 9.70±0.25mm
CABLING	Filler: Strengthed PP rope Material: Non-woven(≥25% overlapping) Assembly: 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
JACKET	Material: TPU Min. average thickness: 2.80mm Min.thickness at any point: 2.28mm O.D.: 38.00+0.6/-1.00mm

Performance Characteristics

ELECTRICAL CHARACTERISTICS

PHYSICAL PROPERTIES

Rated voltage: DC 1000V
Rated temperature:
- Jacket: -40~90ºC
- Insulation: -40~125ºC
Max. conductor resistance(20ºC):
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km
Insulation Voltage withstand(Core A &B,10m):
AC 2.5kV/5min,leakage current ≤5mA
Completed cable Voltage withstand(Core A to A &B,10m):
AC 3.5kV/15min,leakage current ≤5mA
Min. Insulation resistance(20ºC, Core A to A &B): 500MΩ.km

Tensile strength: ≥20MPa
Elongation: ≥300%
Aged condition: 110±1ºC×168h
Percent of original tensile strength: ≤±30%
Percent of original elongation: ≤±30%
High temperature pressure test: ≤50%
Heat shock test: No crack
Compatibility test: GB/T 33594
Flame test: GB/T 18380.12-2008
Artificial weathering test: GB/T 33594
Low-temperature impact test: -40ºC×16H, No crack
Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Vehicle rolling: Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21
Min. Bend radius: 6*OD
Abrasion resistance: ≥2000times
Resistance against chemicals: GB/T 33594
Crush resistance test: GB/T 33594
Curved around the test: GB/T 33594

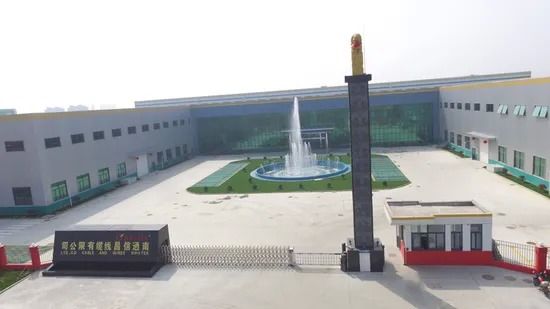

Company Profile
