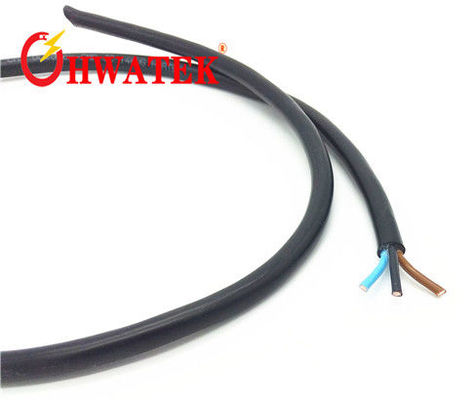

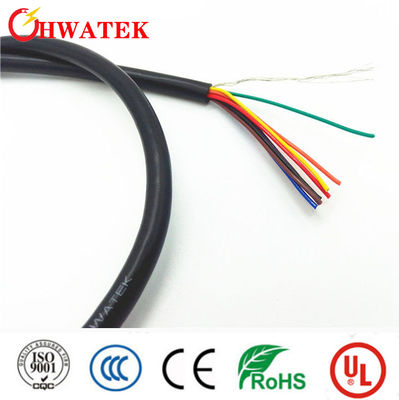

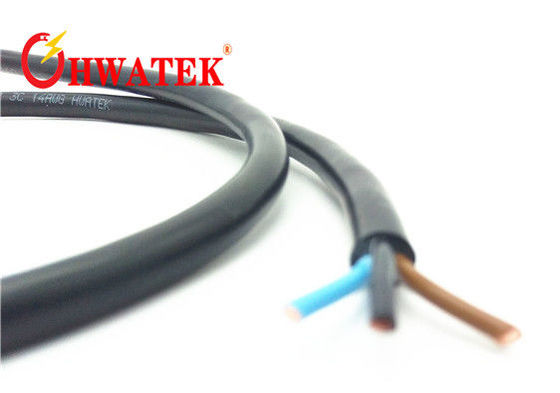

High Voltage Flame Retardant EV Charging Cable with PVC Sheath and Round Wire for Medical Equipment

Gambar besar : High Voltage Flame Retardant EV Charging Cable with PVC Sheath and Round Wire for Medical Equipment

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000 Meter
Harga:	US $0.5-1 / Meter

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	PVC
Bahan isolasi:	Tpe	Bentuk material:	Kawat bundar
Suhu pengenal:	80ºC-105ºC	Nilai Tegangan:	300V, 600V
Resistensi Konduktor:	Maks. Kond. Resistansi (20ºC)Ω/km	Ukuran AWG:	18, 16, 14, 12, 10, 8, 6
Konstruksi Konduktor:	41/0.16, 26/0.254, 65/0.16, 41/0.254, 65/0.254, 105/0.254, 133/0.29, 133/0.36	Ketebalan nominal:	0.76mm, 1.14mm, 1.52mm, 2.03mm, 2.41mm, 2.79mm, 3.17mm, 3.56mm, 3.94mm, 4.32mm, 4.83mm
Diameter inti:	2.8mm, 3.1mm, 3.4mm, 3.9mm, 4.3mm, 4.7mm, 5.7mm, 7.4mm, 8.5mm	Diameter luar:	0-12.0mm, 11.18-15.0mm, 14.54-20.0mm, 18.16-30.0mm, 27.82-40.0mm, 37.38-45.0mm, 44.54-60.0mm, 0-20.0
Perisai:	jalinan tembaga kaleng	Tahan terhadap Suhu Rendah:	-40ºC
Jumlah per rol:	305m, 610m
Menyoroti:	PVC Sheath EV Charging Cable , Round Wire Electric Vehicle Charging Cable , Medical Equipment Application EV Power Cable

Eve, Evjt High Voltage Flame Retardant Power Charging Copper Wire Cable

Type	Conductor	Insulation	Jacket	Max. Cond. Resistance(20ºC)Ω/km
EVJE EVJT(300V)	18 AWG 2-6C 41/0.16	0.76 mm	0.76 mm	0-8.89
	16 AWG 2-6C 26/0.254, 65/0.16	0.76 mm	1.52 mm	11.5-14.0
	14 AWG 2-6C 41/0.254	0.76 mm	2.41 mm	23.0-31.7
	12 AWG 2-6C 65/0.254	0.76 mm	3.17 mm	38.2-50.8
EVE EVT(600V)	18 AWG 2C or more 41/0.16	0.76 mm	2.03 mm	0-12.7
	16 AWG 2C or more 36/0.254,65/0.16	0.76 mm	2.41 mm	12.8-19.1
	14 AWG 2C or more 41/0.254	1.14 mm	2.79 mm	19.2-25.4
	12 AWG 2C or more 65/0.254	1.14 mm	3.17 mm	25.5-38.1

Application

Connection wire between EV charging equipment and EV, including various EVs, charging stations, and charging piles. Application standard: UL62.

Product Characteristics

Flexible cable for easy installation
Excellent resistance to oil, pressure, and abrasion
Withstands low temperatures down to -40°C

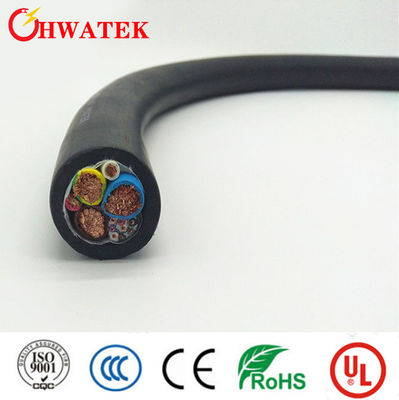

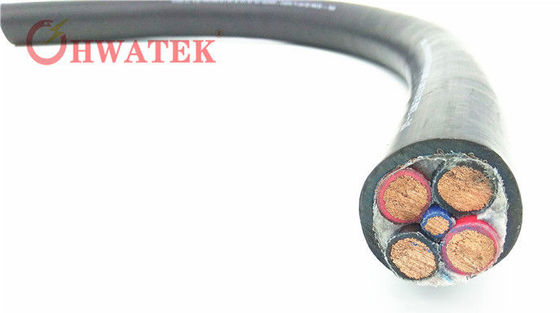

Product Structure

Tinned or bare stranded copper conductor
TPE or PVC insulation
Tinned copper braid shielding
PVC or TPE jacket

Technical Parameters

Rated temperature: 80°C-105°C
Rated Voltage: 300V (EVJE, EVJT) / 600V (EVE, EVT)

Company Profile

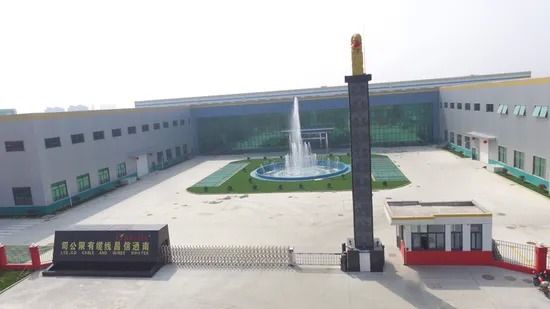

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
