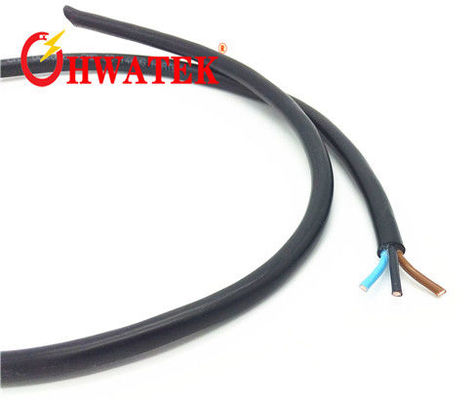

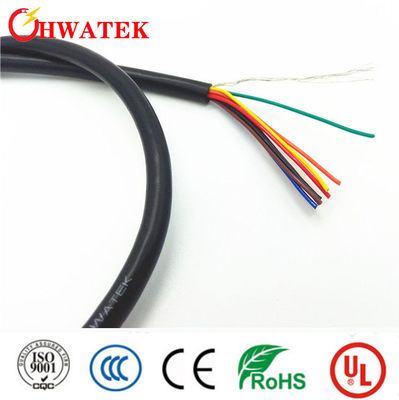

High Voltage Flame Retardant EV Charging Cable with 300V/600V Rated Voltage and 80ºC-105ºC Temperature Range

Gambar besar : High Voltage Flame Retardant EV Charging Cable with 300V/600V Rated Voltage and 80ºC-105ºC Temperature Range

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Bahan konduktor:	Tembaga	Bahan selubung:	PVC
Bahan isolasi:	Tpe	Bentuk material:	Kawat bundar
Resistensi konduktor maksimal:	8.9-11.4 Ω/km	Ketebalan nominal:	0.76-4.83 mm
Diameter inti:	2.8-8.5 mm	Diameter luar:	0-60.0 mm
Suhu pengenal:	80ºC-105ºC	Tegangan Dinilai:	300V-600V
Konstruksi Konduktor:	Terdampar	Perisai:	jalinan tembaga kaleng
Tahan terhadap Suhu Rendah:	-40ºC	Jumlah per rol:	305m, 610m
Kisaran AWG:	6-18
Menyoroti:	High Voltage EV Charging Cable , 300V/600V Rated Voltage EV Charging Cable , 80ºC-105ºC Temperature Range EV Charging Cable

Eve, Evjt High Voltage Flame Retardant Power Charging Copper Wire Cable

Technical Specifications

Type	Conductor	Insulation	Jacket
EVJE EVJT(300V)	18 AWG 2-6C 41/0.16 0.76	2.8 0-8.89 0.76	0-12.0 8.9-11.4 1.14 11.18-15.0
16 AWG 2-6C 26/0.254, 65/0.16 0.76	3.1 11.5-14.0 1.52	14.54-20.0 14.1-22.9 2.03 18.16-30.0
14 AWG 2-6C 41/0.254 0.76	3.4 23.0-31.7 2.41	27.82-40.0 31.8-38.1 2.79 37.38-45.0
12 AWG 2-6C 65/0.254 0.76	3.9 38.2-50.8 3.17	44.54-60.0
EVE EVT(600V)	18 AWG 2C or more 41/0.16 0.76	2.8 0-12.7 2.03	0-20.0

Application

Connection wire between EV charging equipment and EV, including various EVs, charging stations, and charging piles.

Application standard: UL62

Product Characteristics

Flexible cable for easy installation
Excellent resistance to oil, pressure, and abrasion
Performs well in low temperatures down to -40ºC

Product Structure

Tinned or bare stranded copper conductor
TPE or PVC insulation
Tinned copper braid shielding
PVC or TPE jacket

Technical Parameters

Rated temperature: 80ºC-105ºC
Rated Voltage: 300V (EVJE, EVJT) / 600V (EVE, EVT)

Company Profile

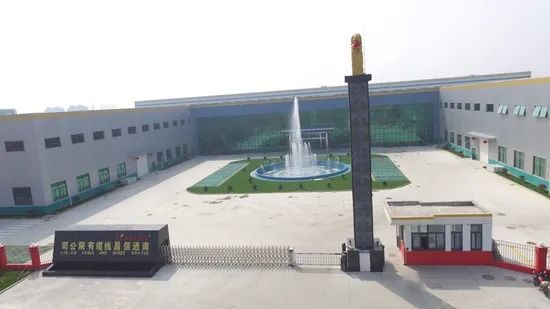

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all products have passed CCC, UL, CUL, CE, CSA, ETL safety certifications. We serve global customers through our sales system based on the principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Certificates
