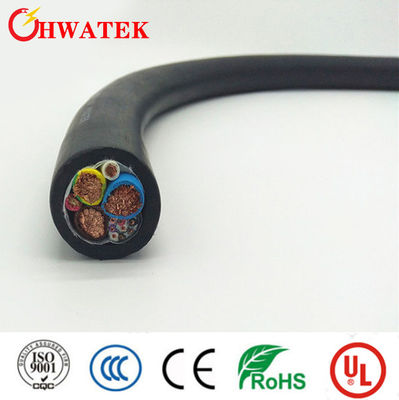

450/750V AC & DC Multicore High Voltage EV Charging Cable with IEC60332-1 Flammability Test and Minimum Bending Radius 5xOD

Gambar besar : 450/750V AC & DC Multicore High Voltage EV Charging Cable with IEC60332-1 Flammability Test and Minimum Bending Radius 5xOD

Detail produk:

Sertifikasi:	ISO9001, CCC, RoHS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	3.000
Harga:	0.5

Kontak

Detil Deskripsi produk

Tegangan Dinilai:	AC450/750V	Suhu pengenal:	-40 ~ +90 ° C.
Bahan konduktor:	Tembaga telanjang atau kaleng terdampar	Bahan isolasi:	Tpe
Bahan selubung:	TPU	Jari -jari lentur minimum:	5xod
Spesifikasi kawat:	3 × 2.5+2 × 0.75, 3 × 4+2 × 0.75, 3 × 6+2 × 0.75, 5 × 2.5+2 × 0.75, 5 × 4+2 × 0.75, 5 × 6+2 × 0.75,	Arus referensi:	18a, 25a, 34a, 50a, 67a
Diameter tidak dilindungi:	12.7mm, 14.4mm, 16.3mm, 15.3mm, 17.8mm, 19.8mm, 22.9mm, 27.5mm	Bentuk material:	Kawat bundar
Jumlah per rol:	305m, 610m atau sebagai permintaan	Uji mudah terbakar:	IEC60332-1
Konstruksi yang fleksibel:	Ya	Sifat tahan:	Dingin, minyak, ozon, abrasi, UV, tekanan eksternal, tegangan termal
Standar referensi:	GB/T 33594-2017
Menyoroti:	450/750V AC & DC EV Charging Cable , IEC60332-1 Flammability Test EV Charging Cable , Minimum Bending Radius 5xOD EV Charging Cable

450/750V AC & DC Multicore HV EV Power Charger Cable Wire

Certification

Certificate No.	Product Types
CQC16011142377	EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V

Structure Diagram

Reference Standard

GB/T 33594-2017

Product Category

AC: EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)

Construction

Rated temperature: -40 ~ +90°C
Rated voltage: AC450/750V
Conductor: Stranded bare or tinned copper
Insulation material: TPE
Sheath material: TPU
Flexible construction, resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress
IEC60332-1 flammability test
Minimum bending radius 5xOD
Easy installation

Product is applicable for all kinds of electric vehicles, charging piles, power stations, and charging stations.

Structural Parameter Table

Category	Wire Specifications	Reference Current (A)	Diameter Unshielded (mm)
EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V	3×2.5+2×0.75	18	12.7 \| 11.1
	3×4+2×0.75	25	14.4 \| 12.8
	3×6+2×0.75	34	16.3 \| 14.5
	5×2.5+2×0.75	18	15.3 \| 13.7
	5×4+2×0.75	25	17.8 \| 16.0
	5×6+2×0.75	34	19.8 \| 17.8
	5×10+2×0.75	50	22.9 \| 20.7
	5×16+2×0.75	67	27.5 \| 25.1

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.

Company Profile

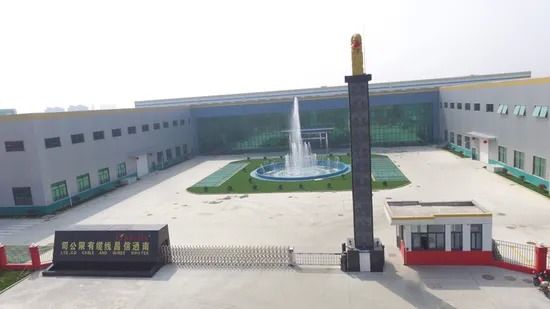

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34,000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
